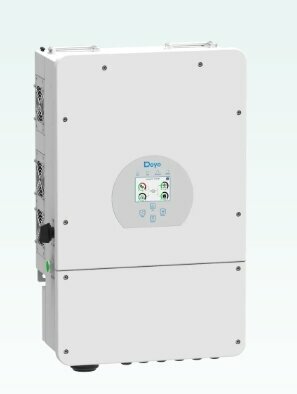

Deye Sun-12K-SG04LP3-EU | Hybride inverter| 12KW | 2 MPPT | Low Voltage | 3 Phases |

Deye Sun-12K-SG04LP3-EU | Hybride inverter| 12KW | 2 MPPT | Low Voltage | 3 Phases |
€ 3.215,00
Price per Unit
Order

Product description

  • Max. DC Input Power: 15600 W
  • Rated PV Input Voltage: 550(160～800) V
  • Start-up Voltage: 160 V
  • MPPT Voltage Range: 200-65 0
  • Full Load DC Voltage Range: 3 50-650
  • PV Input Current: 26 + 13 A
  • Max PV ISC: 34 + 17A
  • No.of MPP Trackers: 2
  • No.of Strings per MPP Tracker: 2 + 1
  • Rated AC Output Active Power: 12000 W
  • Max AC Output Active Power: 132000 W
  • AC Output Rated Current:  18.2/17.4 A
  • Max AC Output  Current: 20/19.1A
  • Max. AC Current:  27.3/26.1 A
  • Max Output short circuit current: 75 A
  • Max. Continuous AC Passthrough: 45 A
  • Peak Power (off grid): 2 time of rated power, 10 S
  • Power Factor: 0.8 leading to 0.8 lagging
  • Output Frequency and Voltage: 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
  • Grid Type: Three Phase
  • Max. Efficiency: 97.60%
  • Euro Efficiency: 97.00%
  • MPPT Efficiency: 99.90%
  • Dimensions: 422mm × 702mm × 281mm
  • Protection Degree: IP 65
  • Warranty: 5 Years
  • Compatible Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range: 40~60 V
  • Max. Charging/Discharging Current: 240 A
  • Charging Strategy for Li-Ion Battery: Self-adaption to BMS

Close
View full description
Attachments
datasheet_sun-(5-12)k-sg04lp3_230731_en.pdf
